ROOF & WALL PANELS
The perfect choice for your next project
Rishikesh Limited ROOF (KR) & Rishikesh Limited WALL (KW) (AVAILABLE IN ALL REGIONS)
Rishikesh Limited standard steel panels are 0.5 mm or 0.6 mm thick and have a minimum yield strength of 345 MPa. Steel panels are hot dipped and galvanized with zinc or zinc-aluminium coating. Galvanized materials conform to G90 for 275 grams per square metre according to ASTM A653. Zinc-Aluminium coated materials conform to AZ150 according to ASTM A792.
Rishikesh Limited panels are prepared with a multilayered coating system to ensure long life and optimum coating adherence. The base material is pretreated, before applying a corrosion resistant primer and top coat. The combined thickness of the painted film is 25 microns on the front side and 12 microns on the reverse side.

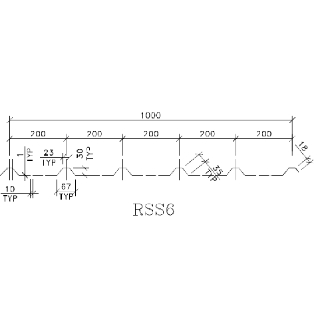

Rishikesh Limited RIB / ROOF (KR)
Rishikesh Limited Roof profile is strong and cost effective and was developed specifically for roofing applications. The bearing leg design permits easier installation and maintenance, supports thicker layers of insulation and allows easier curvature for a visually appealing finish.
| Coverage Arear | 1000 mm |
| Rib Depth | 32 mm |
Rishikesh Limited WALL (KW)
Rishikesh Limited Wall is a cost effective, partially concealed fastener panel with a sculptured valley shape between the major ribs for a superior architectural look for external walls.
| Coverage Arear | 1000 mm |
| Rib Depth | 26 mm |

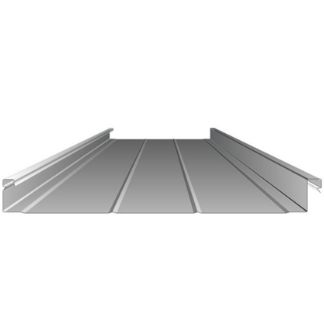

STANDING SEAM ROOF SYSTEMS
KSS 600 (India Region Only)
Rishikesh Limited Standing Seam Panel systems (KSS-600), with double lock standing seam, eliminates the risk of leakage at fasteners at side and end provides excellent protection in all weather conditions. It assures consistent weather tightness with virtually maintenace free performance for many years.
The KSS-600 roof system is the most specified seam roof system in the market since many Rishikesh Limited's KSS-600 Standing Seam Roof System has received the prestigious Factory Mutual Approval (FM approval) from USA. The FM approval is a certification for the high product quality and reliability of this roofing system.

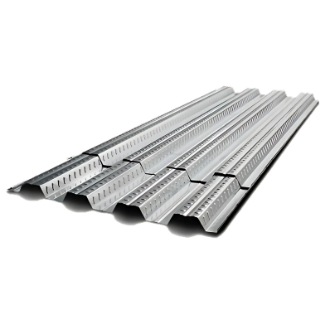

Rishikesh Limited Deck Sheet
Rishikesh Limited Deck Sheet Panels are used in high rise buildings, office buildings and mezzanine floors in industrial buildings and warehouses. These Deck Sheets can be used as a permanent shuttering to support the wet concrete and help in creating composite slabs and floor beams. The continuous flange stiffeners and deep embossments increase the load carrying capacities. They provide for a stable and rigid working platform without any need of propping. These panels are roll formed from hot dip galvanized coils of 345 MPa with thickness starting from 0.6 mm to 1.2 mm.
